Choosing the right size heated towel rail isn't simply a case of finding one that fits your wall.
The best size needs to satisfy two different requirements: it must physically fit your available space and provide enough heat output for your bathroom.
A compact bathroom may only have room for a 400mm or 500mm-wide towel rail, while a larger family bathroom could benefit from a taller or wider model with greater heat output and more room for towels.
In this guide, we'll explain how to choose the right heated towel rail size, how width and height affect your choice, why BTU output matters and what to consider before buying.

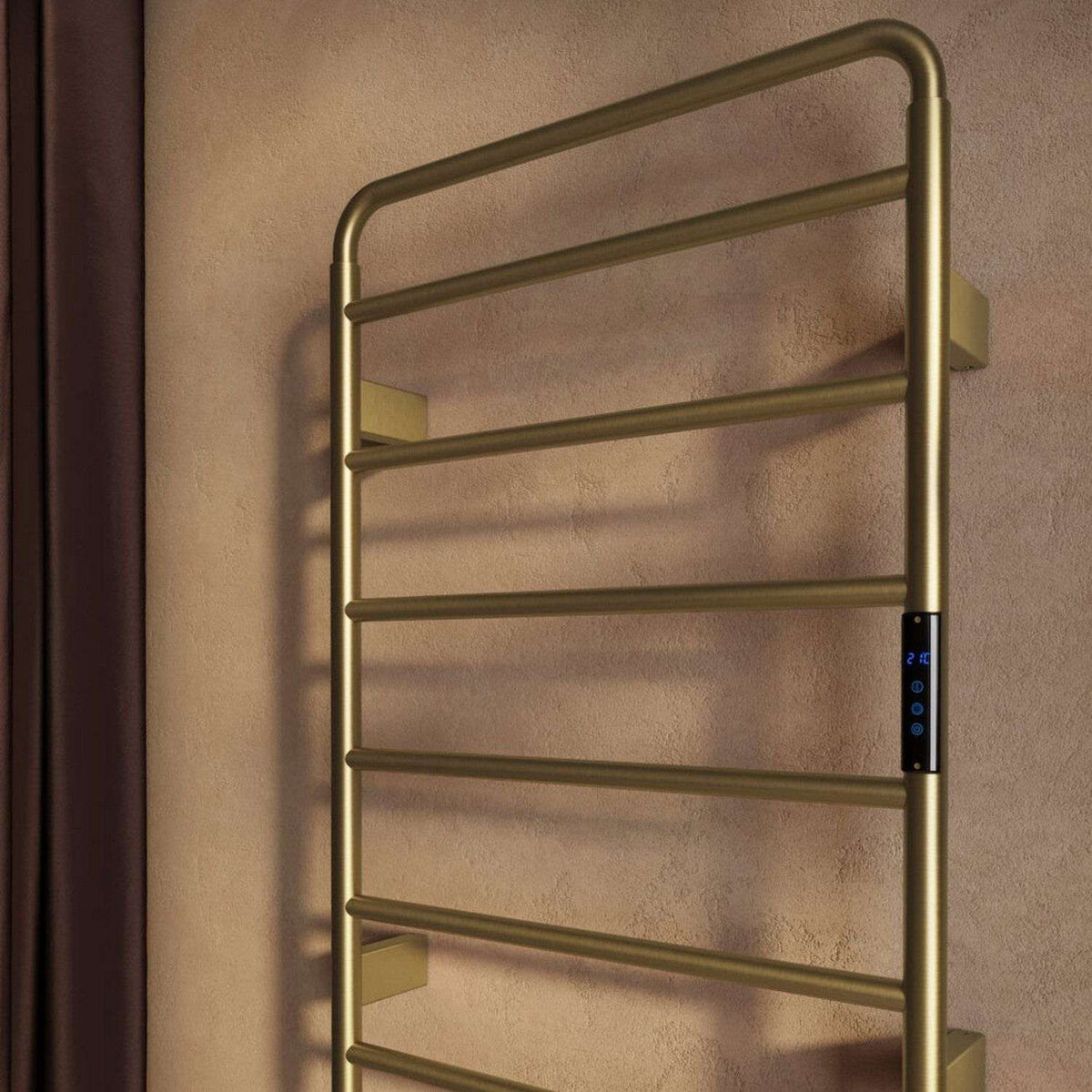

What Size Heated Towel Rail Do I Need?
The right heated towel rail size fits your available wall space, provides sufficient room for your towels and delivers the BTU output required to heat your bathroom.
At Asturias Bathrooms, our heated towel rails include popular widths such as:
- 400mm
- 500mm
- 600mm
Available heights include:
- 800mm
- 840mm
- 1000mm
- 1200mm
- 1500mm
- 1600mm
There are also models and variants outside these dimensions, so you have plenty of flexibility when matching a towel rail to your available space.
However, don't choose based on dimensions alone.
A physically larger heated towel rail will often provide more heat than a smaller equivalent, but its actual heating performance depends on the model, material, design and operating conditions.
The number you really need to establish is the required BTU output of your bathroom.
Heated Towel Rail Size Guide
Here's a simple starting point when comparing different dimensions:
| Heated Towel Rail Size | Typically Suitable For |
|---|---|
| 400mm wide | Compact bathrooms, cloakrooms and en-suites where wall space is restricted |
| 500mm wide | A versatile choice for many standard UK bathrooms |
| 600mm wide | Larger bathrooms or where additional towel space is useful |
| 800–1000mm high | Compact installations and smaller wall spaces |
| 1200mm high | A useful mid-sized option for many bathrooms |
| 1500–1600mm high | Taller wall spaces, larger bathrooms and increased towel capacity |
These dimensions should be treated as a physical sizing guide rather than a heating calculation.
Two towel rails of similar dimensions can have different heat outputs. Always check the stated BTU or wattage of the individual product.
Does Heated Towel Rail Size Matter?
Yes, for two reasons.
First, the towel rail needs to fit comfortably on the wall without interfering with your bath, shower, toilet, basin, bathroom furniture or doors.
Second, its heat output needs to suit the room.
If your heated towel rail is intended to be the bathroom's primary heat source, this second consideration becomes particularly important.
A towel rail that looks perfectly proportioned on the wall but doesn't produce enough heat may keep your towels warm without making the bathroom itself comfortably warm.
Conversely, buying the biggest towel rail that fits isn't necessarily the most efficient solution.
That's why you should determine the bathroom's heat requirement before settling on a particular size.
How Do I Calculate What Size Heated Towel Rail I Need?
The best method is to calculate the room's required BTU output.
BTU stands for British Thermal Unit and is commonly used to describe the amount of heat a radiator or heated towel rail can produce.
Your bathroom's heating requirements depend on more than just its floor area.
Factors include:
- Room length
- Room width
- Ceiling height
- Number and size of windows
- Type of glazing
- External walls
- Doors
- Insulation
- Desired room temperature
A larger or poorly insulated bathroom will generally need a greater heat output than a compact, well-insulated en-suite.
We've covered the calculation in detail in our How to Calculate BTU guide.
Once you've established your approximate requirement, compare it with the stated output of the heated towel rails you're considering.
In simple terms: calculate the required BTU first, then find a towel rail with an appropriate output that also fits your available wall space.
What Does BTU Mean on a Heated Towel Rail?
BTU is a measure of heat output.
The higher the BTU figure, the more heat the towel rail can deliver under its stated test conditions.
For example, Asturias Bathrooms' current heated towel rail range includes products across heat-output bands such as:
- Less than 1,000 BTU
- 1,000–1,999 BTU
- 2,000–2,999 BTU
- 3,000–3,999 BTU
This makes BTU a much more useful comparison than simply asking whether you need an 800mm, 1200mm or 1600mm-high towel rail.
Physical dimensions tell you whether the rail fits. BTU tells you whether its heat output is appropriate.
What Size Heated Towel Rail for a Small Bathroom?
For a small bathroom or en-suite, a 400mm or 500mm-wide heated towel rail can be a useful starting point where wall space is limited.
A shorter model, around 800–1000mm high, may also be suitable where you have restricted vertical space, such as the Smedbo Dry S Model 500 x 525mm Polished Electric Towel Warmer.
But don't assume that a small bathroom automatically requires the smallest available towel rail.
Bathrooms can lose considerable heat through windows and external walls. A small but poorly insulated bathroom may require more heating than its dimensions initially suggest.
Calculate the room's requirement using our BTU calculation guide, then compare suitable outputs within our heated towel rail collection.
What Size Heated Towel Rail for a Medium Bathroom?
A 500mm-wide towel rail is a versatile option for many standard bathrooms because it provides useful towel capacity without demanding excessive wall space.
Depending on your room layout and heating requirements, heights such as 1000mm or 1200mm can provide a good balance between available wall space, towel capacity and appearance.
Again, dimensions alone shouldn't make the final decision.
If the heated towel rail will be your bathroom's primary source of heat, make sure its output meets the room's calculated heating requirement.
What Size Heated Towel Rail for a Large Bathroom?
Larger bathrooms generally require more heat because there is a greater volume of air to warm.
If wall space allows, a 600mm-wide or taller 1200–1600mm heated towel rail may provide greater towel capacity and potentially greater heat output, depending on the model.
However, a heated towel rail isn't automatically the best primary heat source for every large bathroom.
Traditional and designer radiators can provide higher whole-room heating capacity, while towel rails prioritise the useful combination of heating and towel storage.
If you're deciding between the two, read our complete Radiators vs Heated Towel Rails comparison.
In some larger bathrooms, a radiator may be the better primary heat source, with a heated towel rail used alongside it to keep towels warm and dry.
Is a 500mm Heated Towel Rail Big Enough?
A 500mm-wide heated towel rail can be suitable for many bathrooms, but width alone cannot tell you whether it will provide enough heat, such as the Vibe 500mm Wide Brushed Bronze Towel Radiator.
The height, construction and individual product design all influence the available heat output.
So rather than asking only, "Is 500mm wide enough?", ask:
Does this 500mm towel rail have enough BTU output for my bathroom?
If the answer is yes and its physical dimensions work with your wall space, you've found a much stronger match.
Is a 400mm Heated Towel Rail Too Small?
Not necessarily.
A 400mm-wide heated towel rail can be an excellent space-saving solution for an en-suite, cloakroom or compact bathroom.
It can also fit narrow sections of wall that wouldn't accommodate a standard radiator.
However, check the heat output carefully if you're expecting the towel rail to heat the entire bathroom.
A compact rail may be perfectly adequate for warming and drying towels, but it could require an additional heat source if the room's overall BTU requirement exceeds the rail's output.
Should I Choose a Taller Heated Towel Rail?
A taller towel rail can be a practical way of increasing towel capacity without taking up more horizontal wall space.
This makes tall vertical designs particularly useful in bathrooms where wall width is limited.
Asturias Bathrooms currently offers heated towel rail heights extending to 1200mm, 1500mm, and 1600mm, giving you options when vertical rather than horizontal wall space is available.
A taller rail may also offer greater heat output than a smaller model within the same range, but never assume this. Compare the manufacturer's stated output for the exact model and size.
How Many Towels Can I Fit on a Heated Towel Rail?
This depends on the height, width and bar configuration rather than dimensions alone.
A larger family bathroom where several people need to hang towels will naturally benefit from more usable rail space than a single-person en-suite.
When comparing sizes, consider:
- How many people use the bathroom
- Number of towels normally in use
- Size and thickness of your towels
- Spacing between the bars
- Whether the towels will cover much of the rail
- Whether the rail is primarily for heating towels or heating the room
Don't pack towels tightly across every available bar if you're relying on the rail for room heating, as covering the surface can affect how effectively heat is transferred into the bathroom.
Heated Towel Rail or Radiator: Which Do I Need?
This depends on what you want the appliance to do.
A heated towel rail combines useful bathroom heating with a place to hang warm, dry towels. Its wall-mounted vertical design can also make efficient use of space.
A radiator is primarily designed to heat the room and may provide greater whole-room heat output, particularly in larger spaces.
As a result:
Small bathroom: A properly sized heated towel rail may serve as the primary heat source.
Medium bathroom: either option may work depending on the calculated BTU requirement.
Large bathroom: a higher-output radiator or a combination of radiator and towel rail may be more appropriate.
Our Radiators vs Heated Towel Rails guide explores the differences in greater detail.
Electric, Central Heating or Dual Fuel: Does It Affect the Size I Need?
The heating method is another important consideration.
Central Heating Heated Towel Rails
These connect to your central heating system and operate similarly to a conventional radiator.
They're a natural choice if you're replacing an existing plumbed radiator or towel rail and want the new unit to work alongside your home's heating system.
Electric Heated Towel Rails
Electric towel rails operate independently from the central heating system.
This can be particularly useful during warmer months when you want dry, warm towels without switching on your home's complete central heating system.
Dual Fuel Heated Towel Rails
A dual-fuel setup combines central heating with an electric heating element.
This means the rail can run with the central heating during winter but also be operated electrically when the main heating is switched off.
The Asturias Bathrooms heated towel rail range includes both electric-only and dual-fuel options, so factor in your preferred heating method, as well as dimensions and output, when making your selection.
Once you've selected your type and size, our How to Install a Heated Towel Rail guide explains the different installation considerations.
How to Measure for a Heated Towel Rail
Before ordering, measure the installation area carefully.
1. Measure the Available Width
Measure the clear wall width where you want the towel rail to sit.
Don't simply choose a 500mm rail because you have exactly 500mm of space. The complete installation may require additional clearance and space for valves, connections, or fittings, depending on the product.
Check the individual product dimensions before ordering.
2. Measure the Available Height
Measure vertically from the proposed lower position to any obstruction above.
Consider:
- Windows
- Shelves
- Mirrors
- Cabinets
- Electrical fittings
- Sloping ceilings
If horizontal wall space is restricted, a taller vertical towel rail can be an effective solution.
3. Check the Depth
Don't overlook how far the rail projects from the wall.
The Asturias Bathrooms collection includes products with varying depths, so check the full dimensions if the towel rail will sit near a door, shower enclosure, toilet, or other fixture.
4. Check Existing Pipework
If you're replacing an existing central heating radiator or towel rail, measure the pipe centres and compare them with the connections required by the new product.
Choosing a different width may require pipework alterations.
5. Allow for Radiator Valves
A central heating towel rail also requires suitable radiator valves.
Account for the valves and pipework when measuring your available installation area, rather than treating the rail's stated width as the complete installed width.
6. Check the Product Specification
Finally, check the manufacturer's individual dimensions, heat output and installation requirements.
Once you're ready to fit it, see our step-by-step How to Install a Heated Towel Rail guide.
Does a Bigger Heated Towel Rail Give Off More Heat?
Often, but not always.
Within the same product range and construction, increasing the size can increase the available surface area and therefore heat output.
However, you shouldn't use physical size as a substitute for checking the actual heat-output specification.
Material, design, construction and operating conditions can all affect performance.
Compare the BTU or wattage figures for the exact model and size, rather than assuming the tallest or widest towel rail will automatically be the best heater.
What If My Heated Towel Rail Doesn't Have Enough BTU?
If your preferred towel rail doesn't provide enough output to meet your bathroom's calculated requirement, you have several options.
You could:
- Choose a higher-output towel rail
- Select a larger size within the same range
- Consider a different design
- Use a radiator as the primary heat source
- Use a heated towel rail alongside another heat source
The best solution depends on the room and heating system.
Don't deliberately undersize the heating simply because a particular towel rail looks right for the space.
What Colour Heated Towel Rail Should I Choose?
Once you've established the correct dimensions and heat output, you can concentrate on appearance.
At Asturias Bathrooms, our heated towel rail collection includes finishes such as chrome, black, matt black, anthracite, brushed brass, brushed bronze, stainless steel, gunmetal and white, giving you plenty of scope to coordinate the rail with your taps, shower, accessories and wider bathroom design.
Finishing should generally come after the practical decisions regarding heat output, dimensions, and fuel type.
Heated Towel Rail Size FAQs
What is the most common width for a heated towel rail?
500mm is one of the most versatile heated towel rail widths and is particularly well represented within the Asturias Bathrooms range.
However, 400mm and 600mm options can work better where you have less or more wall space available.
What size towel rail do I need for my bathroom?
Calculate your bathroom's required BTU output first, then choose a towel rail that provides an appropriate level of heat while fitting within your available wall space.
See our How to Calculate BTU guide for the full calculation.
What size heated towel rail for an en-suite?
A compact 400mm or 500mm-wide rail can be a good starting point for many en-suites, but the correct heat output depends on the room dimensions, glazing, external walls and insulation.
Don't select the final size until you've established the room's approximate heating requirement.
Can a heated towel rail heat a whole bathroom?
Yes, potentially, provided its heat output meets the room's heating requirement.
A suitably specified towel rail may be sufficient in a smaller bathroom, whereas a larger or poorly insulated bathroom may require a higher-output radiator or additional heat source.
For a deeper comparison, see Radiators vs Heated Towel Rails.
How high should a heated towel rail be?
There isn't one correct towel rail height for every bathroom.
The Asturias Bathrooms range includes common heights such as 800mm, 1000mm, 1200mm and 1600mm, amongst others.
Choose according to available wall space, towel capacity, required heat output and the individual manufacturer's installation instructions.
Is a 1200 × 500mm heated towel rail a good size?
A 1200 × 500mm towel rail is a versatile physical size for many bathrooms, providing useful vertical towel space without being particularly wide.
Whether it's the right size depends on the BTU output of the particular model and your bathroom's calculated heating requirement.
Can I replace a radiator with a heated towel rail?
Yes, in many cases, but you need to consider pipework, valve positions and—most importantly—whether the new towel rail provides sufficient heat for the room.
Read our Radiators vs Heated Towel Rails guide before deciding.
How do I install a heated towel rail?
Installation depends on whether you've selected a central heating, electric or dual-fuel configuration.
Central heating models require plumbing connections, while electrical work for electric and dual-fuel installations has additional bathroom electrical safety requirements.
For the full process, read our How to Install a Heated Towel Rail.
What Size Heated Towel Rail Do I Need? Quick Checklist
Before ordering:
- Measure your bathroom's length, width and height.
- Calculate the room's approximate BTU requirement.
- Decide whether the towel rail will be your primary or supplementary heat source.
- Measure your available wall width and height.
- Check the towel rail's stated BTU or wattage.
- Consider how many towels you need to hang.
- Choose between central heating, electric, or dual-fuel.
- Check existing pipe positions if replacing another radiator.
- Allow space for valves and connections.
- Check the exact product specifications before ordering.
Find the Right Heated Towel Rail for Your Bathroom
The answer to "What size heated towel rail do I need?" comes down to two numbers: the space available on your wall and the heat output your bathroom requires.
A compact 400mm-wide towel rail can make excellent use of limited wall space, while a 500mm rail provides a versatile option for many bathrooms. Larger 600mm-wide and taller models can provide more towel space and may offer greater heat output depending on the design.
But physical dimensions are only half of the equation.
Start by reading our How to Calculate BTU guide to establish how much heat your bathroom requires.
If you're unsure whether a towel rail is the right primary heat source, compare the options in the Radiators vs Heated Towel Rails article.
Once you've selected the right model, our How to Install a Heated Towel Rail guide covers what comes next.
Ready to choose? Browse our complete range of heated towel rails to compare sizes, heat outputs, finishes and fuel types.
