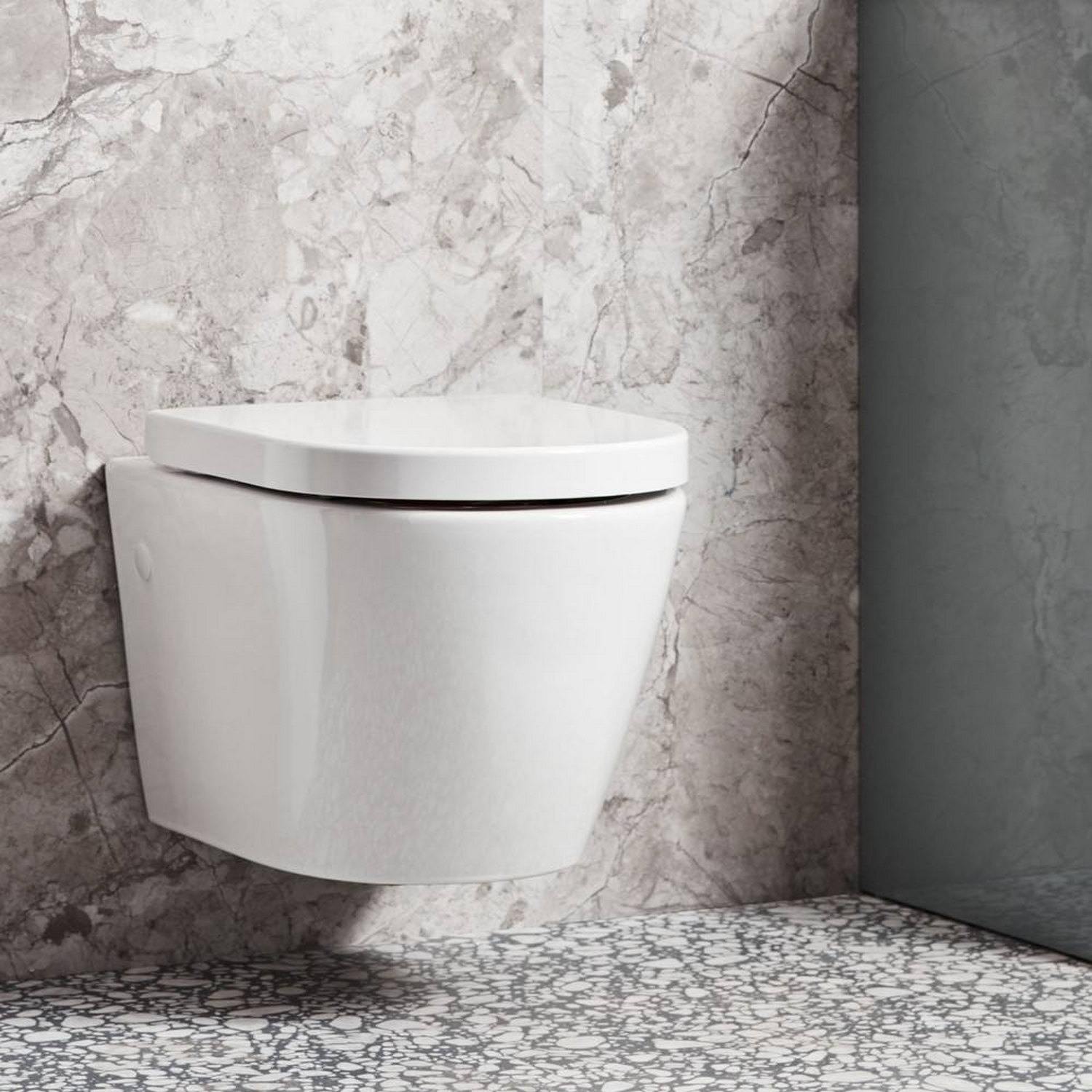

Wall-hung toilets provide a sleek, modern look that saves space and makes floor cleaning incredibly simple. If you are upgrading your bathroom, installing one of these floating designs might seem like a daunting task reserved only for expert plumbers. With the right tools, careful planning, and our detailed instructions, a confident DIY enthusiast can tackle this job.
In this guide, Asturias Bathrooms walks you through the entire installation process. From assembling the concealed frame to finalising the plumbing connections, you will learn exactly what it takes to fit a wall-mounted toilet. We will also cover the required materials, pre-installation checks, and maintenance tips to keep your bathroom in top working order.
If you are ready to modernise your bathroom and want to understand the installation process before buying, read on to discover our expert advice.
Understanding Wall-Hung Toilets
Wall-hung toilets are a fantastic choice for compact en-suites and large family bathrooms alike. Because the pan is suspended above the floor and the cistern is hidden behind a wall, these toilets save valuable floor space. The hidden cistern design reduces flushing noise, while the floating pan adds a highly desirable minimalist aesthetic to your bathroom. You can read more about these benefits in our Wall Hung Toilets: Pros and Cons guide.
Before starting the installation, you need to understand the main components. The system relies on a sturdy metal mounting frame, a concealed cistern, a flush plate, and the toilet pan itself. If you want to explore the differences between this style and other models on the market, check out The Ultimate Toilet Buyer's Guide.
Tools and Materials Required
Gathering the correct tools and materials before you begin will save you time and frustration.
Essential Tools
You will need the following tools to complete the installation safely and accurately:
- Power drill with masonry and wood drill bits
- Spirit level
- Adjustable spanner
- Tape measure
- Silicone sealant and a caulking gun
- Pencil or marker
- Hacksaw (for cutting plastic pipes)
- Screwdrivers (flat-head and Phillips)
Essential Materials
Make sure you have all the necessary components ready:
- Wall-hung toilet pan
- Concealed cistern
- Metal mounting frame
- Flush plate
- Waste pipe connectors
- Water supply pipe and isolation valve
- Fixings (coach bolts and heavy-duty wall plugs)
Pre-Installation Steps
Preparation is the most important part of any bathroom project. Skipping these steps can lead to uneven frames and plumbing leaks.
Planning and Measurements
Start by measuring your available space. Decide exactly where the toilet will sit, taking into account the position of your existing soil pipe. Mark the centre line of the toilet on the floor and the wall. Use your spirit level to ensure these lines are perfectly straight.
Checking Wall Suitability and Structural Support
Wall-hung toilets rely entirely on the metal mounting frame to support the weight of the pan and the user. The wall behind the frame must be structurally sound. Solid brick or block walls are ideal. If you are fitting the frame against a stud wall, you must reinforce the area with thick timber noggins to bear the load safely.
Understanding Plumbing Requirements
Check the locations of your cold water feed and waste pipes. The water supply will need to connect to the concealed cistern, so you may need to reroute your existing copper or plastic pipes. The large soil pipe must align with the waste outlet on the mounting frame.
Installing the Mounting Frame and Cistern
The metal frame is the backbone of your new toilet. It holds the cistern in place and provides the threaded bolts that the ceramic pan hangs from.
Securing the Frame to the Wall
Position the frame against the wall and align it with your centre marks. Adjust the legs to set the toilet pan at the correct height—usually around 400mm from the finished floor level. Use your spirit level to check the frame horizontally and vertically. Mark the fixing points on the wall and floor. Drill the holes, insert your heavy-duty wall plugs, and secure the frame tightly using coach bolts.
Connecting Water Supply and Waste Pipes
Attach the large black waste pipe to the bracket at the bottom of the frame, ensuring it connects securely to your main soil pipe. Next, connect your cold water supply to the inlet valve on the concealed cistern. We highly recommend fitting an isolation valve on this pipe. This allows you to turn off the water to the toilet without shutting off the mains supply for the whole house.
Testing for Leaks and Proper Operation
Before hiding the plumbing behind a wall, you must test the system. Turn on the water supply and let the cistern fill. Check the inlet connection carefully for any drips. Press the flush mechanism manually to ensure water flows down into the waste pipe without leaking.
Preparing the Wall for Tiling and Finishing
Once the frame is secure and leak-free, you need to build a stud structure around it to hide the components.
Boxing in the Frame and Cistern
Construct a timber frame around the metal mounting frame. Ensure you leave clear access to the flush plate area, as this will act as your inspection hatch in the future. The manufacturer's flush plate template will guide you on the exact size of the opening required.
Plasterboarding and Waterproofing
Cover the timber framework using moisture-resistant plasterboard. Cut out the holes for the flush plate, the threaded mounting bolts, the flush pipe, and the waste pipe. Once the boards are screwed in place, you can apply your chosen tiles or bathroom wall panels over the top. Allow the tile adhesive and grout to dry completely before moving to the next step.
Mounting the Toilet Bowl
With the wall finished, you are ready to attach the ceramic pan.
Attaching the Toilet Bowl to the Frame
Measure and cut the flush and waste pipes to the correct lengths, according to the manufacturer's instructions. Push the pipes firmly into the wall connections. Slide the toilet bowl carefully onto the exposed threaded bolts protruding from the tiled wall. Secure the pan using the supplied nuts and washers, tightening them with your adjustable spanner. Apply a neat bead of silicone sealant around the back edge of the pan where it meets the tiles to create a watertight seal.
If you are looking for a beautiful, high-quality ceramic pan to complete your bathroom, consider the Riviera Square Rimless Wall Hung Pan with Soft Close Seat. With a striking modern design and an excellent 5-star review noting its "Top quality", this toilet offers outstanding value. Browse and shop today to secure yours.
Connecting the Flush Plate
Connect the pneumatic tubes or mechanical rods from the cistern to the back of the flush plate. Clip the flush plate onto the wall-mounted bracket.
Final Checks and Adjustments
Turn the water supply back on. Give the toilet a few test flushes to ensure everything operates correctly. Check around the base of the pan and the wall for any signs of water. Fit the toilet seat according to the instructions provided.
Post-Installation Care and Maintenance
Keeping your new toilet in excellent condition is simple when you follow a few basic rules.
Cleaning Guidelines
Clean the ceramic pan regularly using a non-abrasive bathroom cleaner. Because the toilet is wall-hung, you can quickly mop the floor beneath it without having to clean around a clumsy pedestal. Wipe the flush plate with a soft, damp cloth to prevent scratching the finish.
Troubleshooting Common Issues
Over time, you might notice minor issues such as a seat that shifts side to side. This is an incredibly common and easy problem to solve. You can learn exactly how to fix it by reading our guide on How to Tighten a Loose Toilet Seat. If you experience issues with the flush mechanism, simply unclip the flush plate from the wall to access the internal cistern parts.
Frequently Asked Questions
Is it easy to install a wall-hung toilet?
Installing a wall-hung toilet requires moderate to advanced DIY skills. You must be comfortable with plumbing connections, building timber frames, and securing heavy loads to masonry walls.
What are the disadvantages of wall-hung toilets?
The main drawback is the installation time. Because you have to build a frame and box it in, the initial setup takes longer and can cost more than fitting a standard close-coupled toilet.
Do you have to tile behind a wall-hung toilet?
Yes. You must finish the wall covering—whether tiles, wall panels, or paint—before mounting the ceramic toilet bowl to the metal bolts.
How are wall-mounted toilets attached?
They are attached using long, heavy-duty threaded bolts that connect directly to a reinforced metal mounting frame hidden behind the bathroom wall.
Ready to Upgrade Your Bathroom?
Installing a wall-hung toilet gives your bathroom an incredibly stylish, premium look while making the room much easier to clean. By following this guide, understanding your plumbing connections, and ensuring your walls are structurally sound, you can fit a floating toilet with total confidence.
If you lack experience with plumbing or structural work, we always recommend hiring a professional bathroom fitter to guarantee a secure, leak-free finish.
